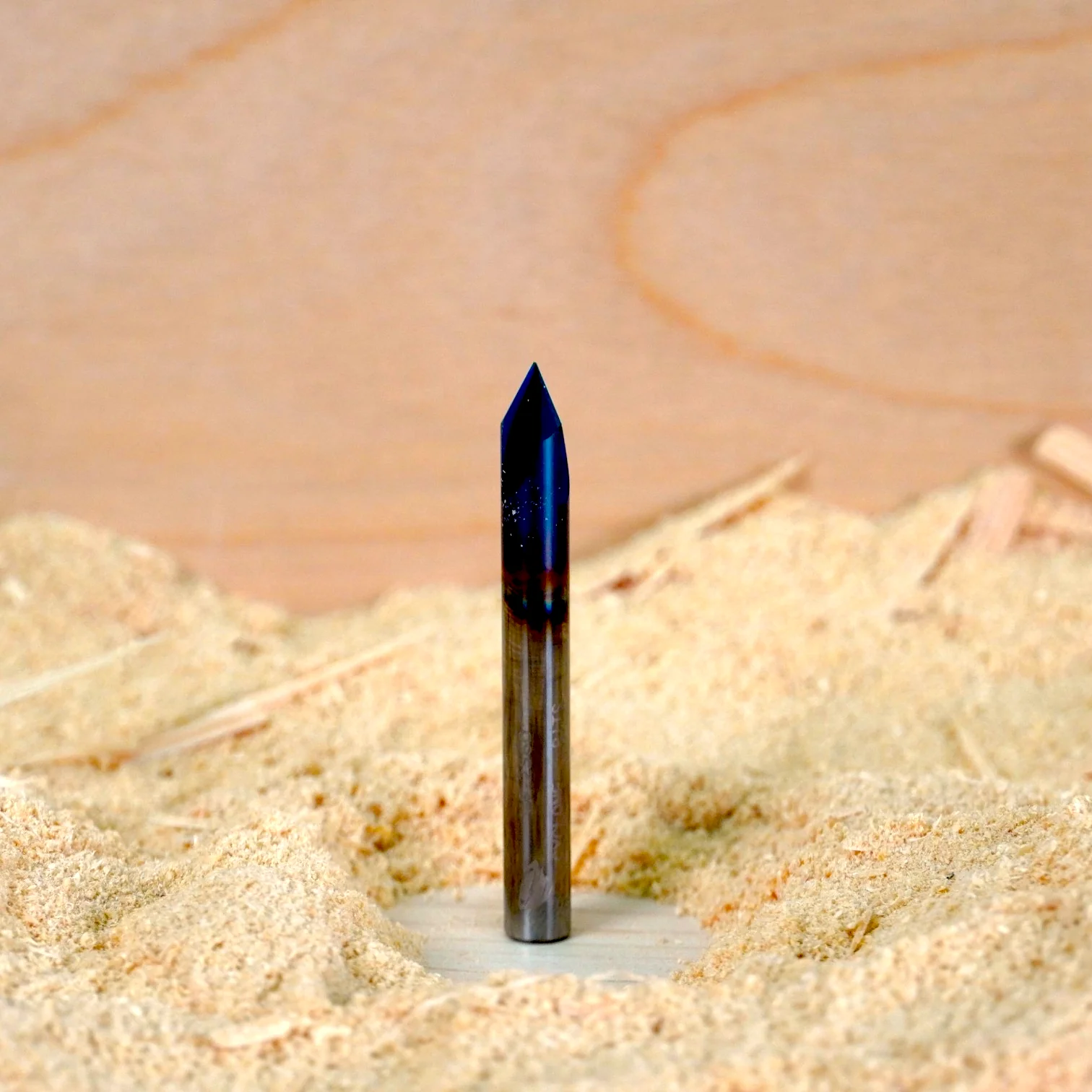

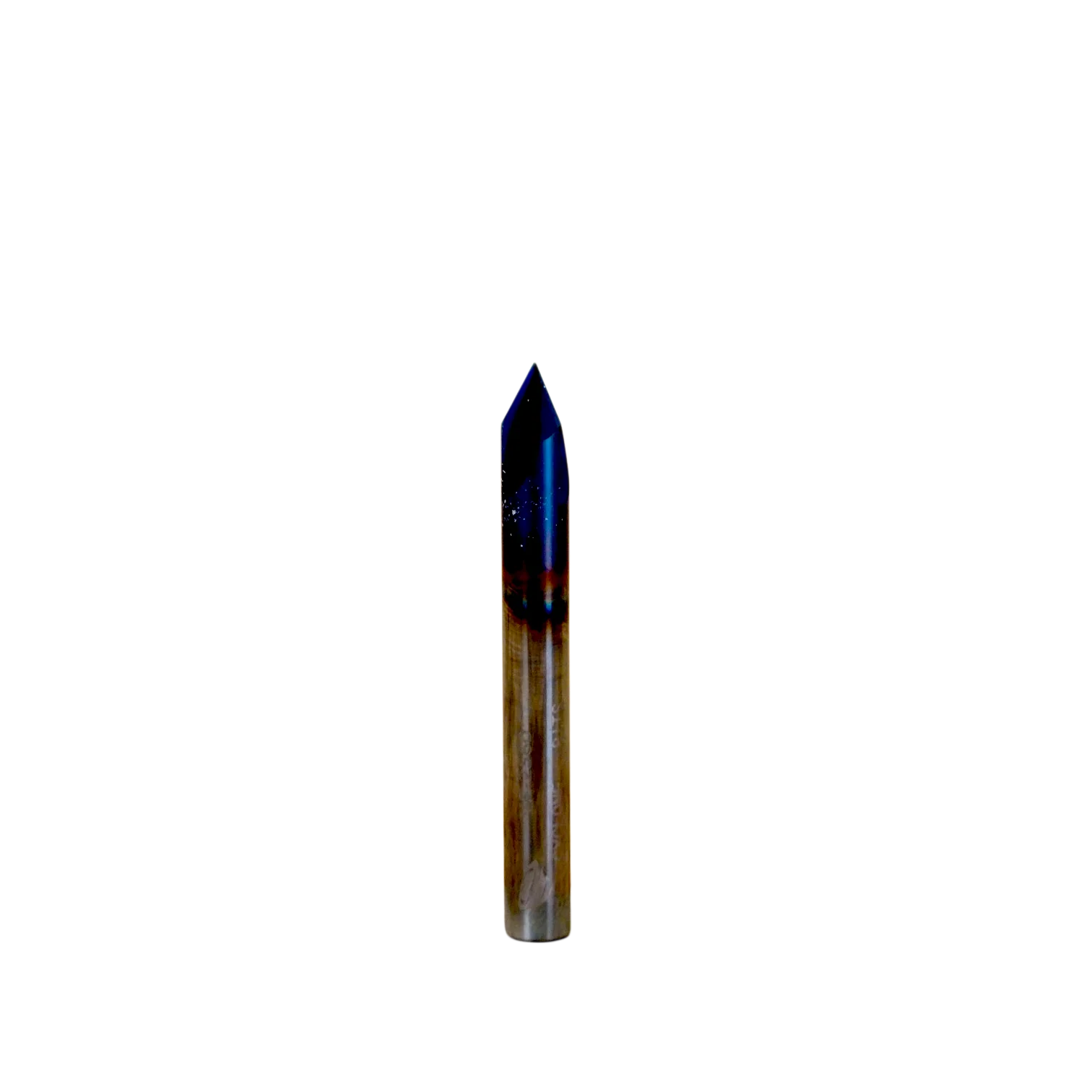

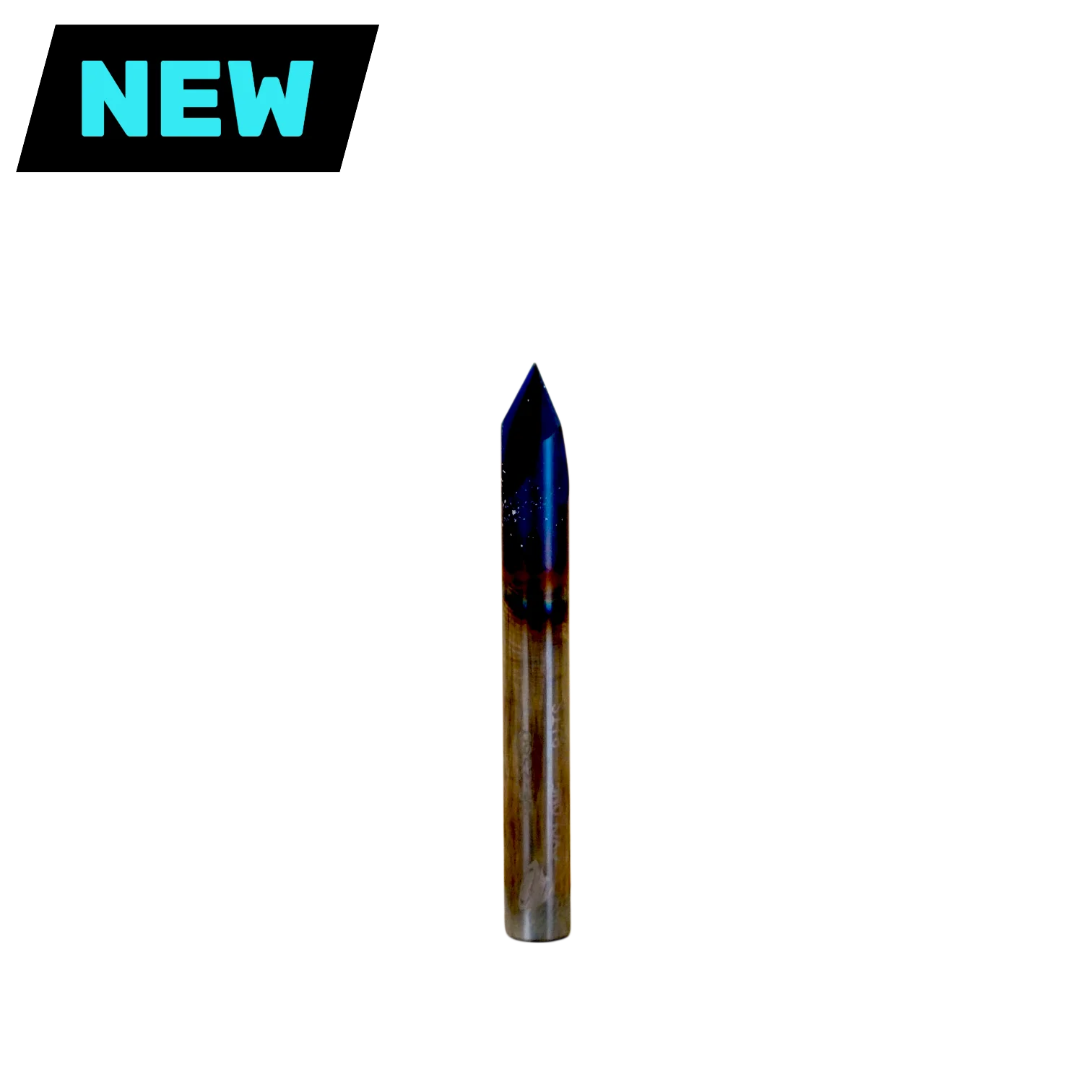

VB-2560 60deg V-Bit

60° V-Bit
Tungsten Carbide • Nano Blue Coated

Overview
Built for engraving, lettering, chamfers, and decorative detail work. The 60° geometry offers a strong balance of edge durability and fine detail, while the Nano Blue coating improves heat resistance and tool life during high-speed CNC cutting.

Best For

• V-carved text and graphics
• Chamfering edges
• Decorative detailing
• Sign making and inlays

Why Choose It

• Stronger edge than sharper V-bits
• Cleaner medium-detail results than wider angles
• Helps reduce tip wear on long engraving jobs

Starting Parameters
Conservative starting values. Adjust for material, machine rigidity, and toolpath strategy.

• Spindle: 16,000–20,000 RPM
• Feed: 80–160 IPM
• Plunge: 30–60 IPM
• Depth Strategy: Use shallow passes for consistent line width and finish

Compatible Materials

• Hardwood and softwood
• Plywood and MDF
• Plastics and acrylic
• Foam and composites

Specifications

• Tool Type: V-Bit
• Included Angle: 60°
• Flutes: 3
• Overall Length: 2.36"
• Shank Diameter: 1/4"
• Material: Tungsten Carbide
• Coating: Nano Blue

Notes

• Line width is controlled by depth of cut
• Best results come from rigid machines and accurate Z-zeroing
• Zero Z carefully to avoid over-cutting
