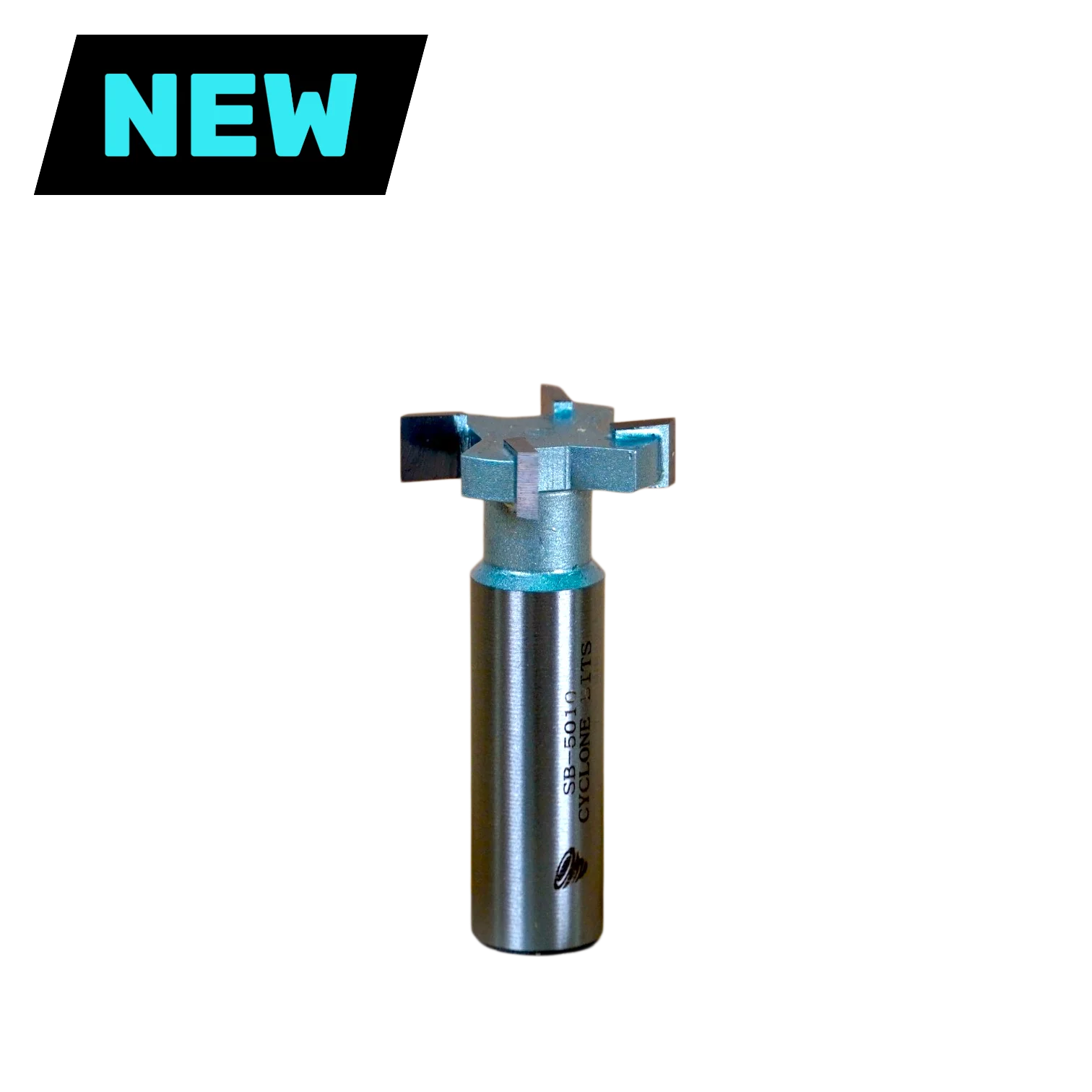

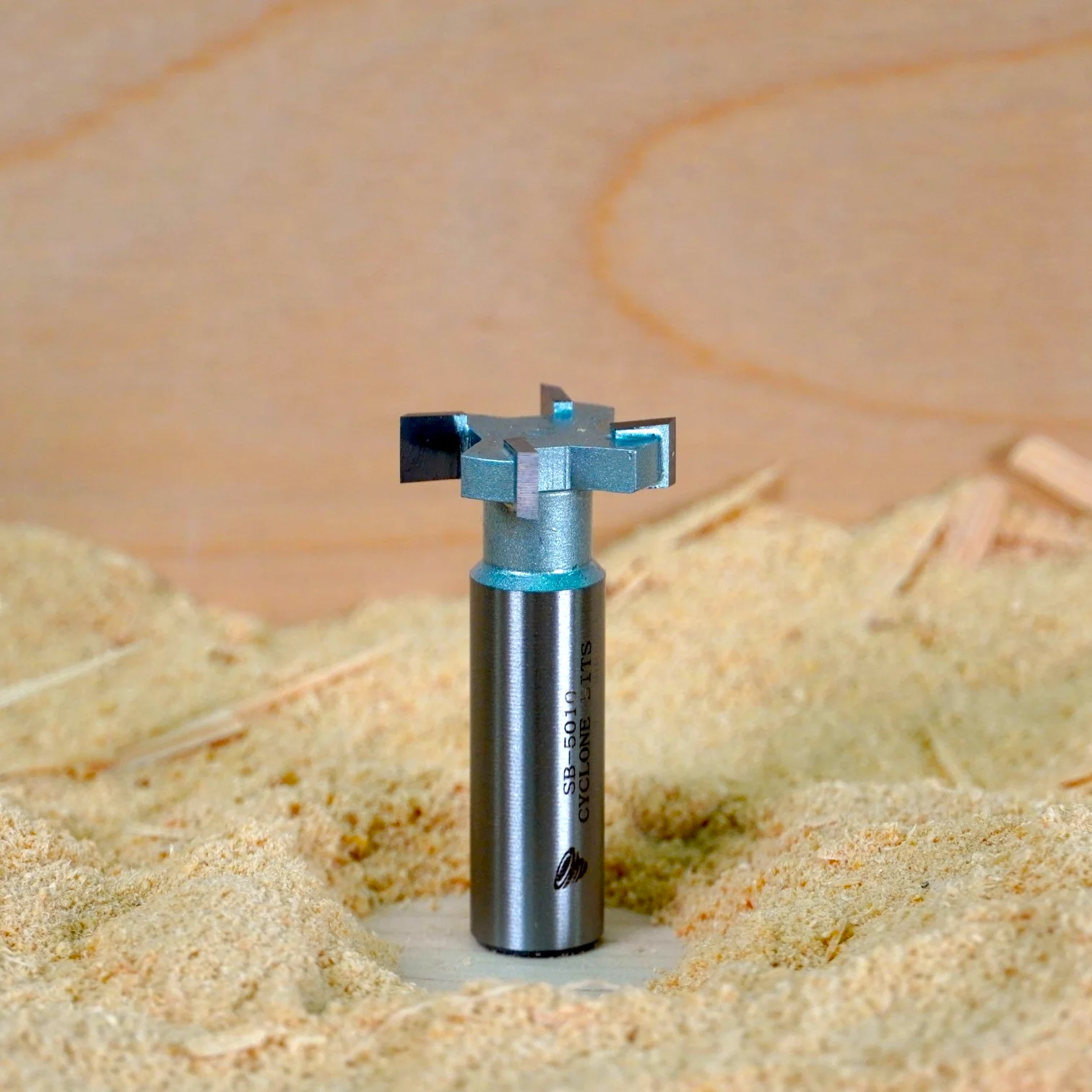

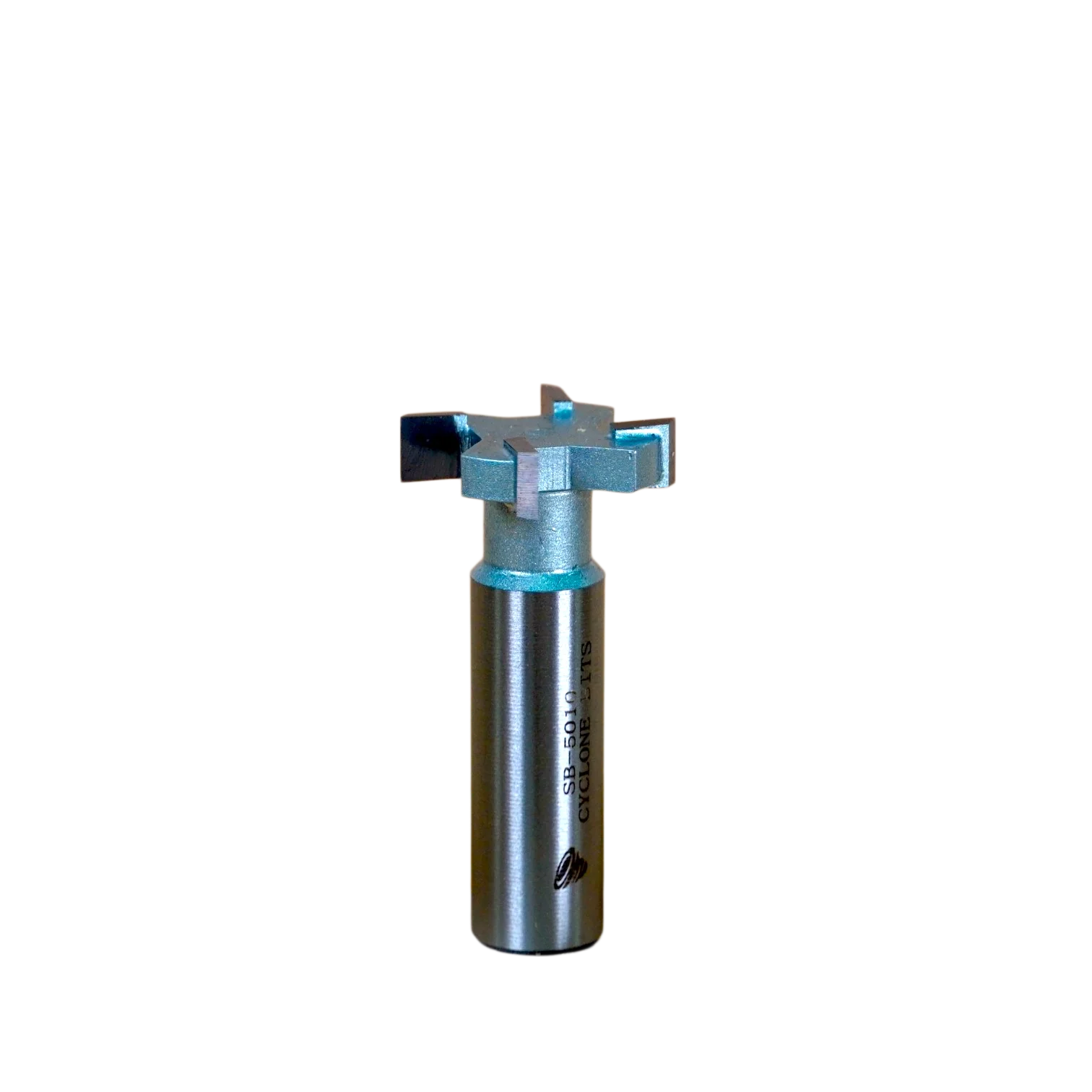

SB-5010 1" Surfacing Bit

1" Surfacing Bit with 1/2" Shank
Tungsten Carbide

Overview
Designed for fast, consistent flattening of spoilboards and large workpieces. The 1" cutting diameter removes material efficiently, while the rigid 1/2" shank helps maintain a smooth, even finish.

Best For

• Spoilboard flattening
• Slab leveling
• Removing uneven stock
• Creating flat reference surfaces

Why Choose It

• Covers more area per pass
• Helps reduce toolpath time
• Produces a more uniform finish

Starting Parameters
Safe starting points. Adjust for machine rigidity, material, and finish requirements.

• Spindle: 12,000–18,000 RPM
• Feed: 150–300 IPM
• Plunge: 30–60 IPM
• Depth per pass: 0.01"–0.03"
• Stepover: 40–60%

Compatible Materials

• MDF
• Plywood
• Hardwood
• Softwood
• Composite spoilboards

Specifications

• Tool Type: Surfacing / Spoilboard Cutter
• Cutting Diameter: 1"
• Flutes: 2
• Overall Length: 3"
• Cutting Length: 0.5"
• Shank Diameter: 1/2"
• Material: Tungsten Carbide

Notes

• Verify proper collet fit for 1/2" shanks
• Use light passes for best finish
• Secure the spoilboard before surfacing
