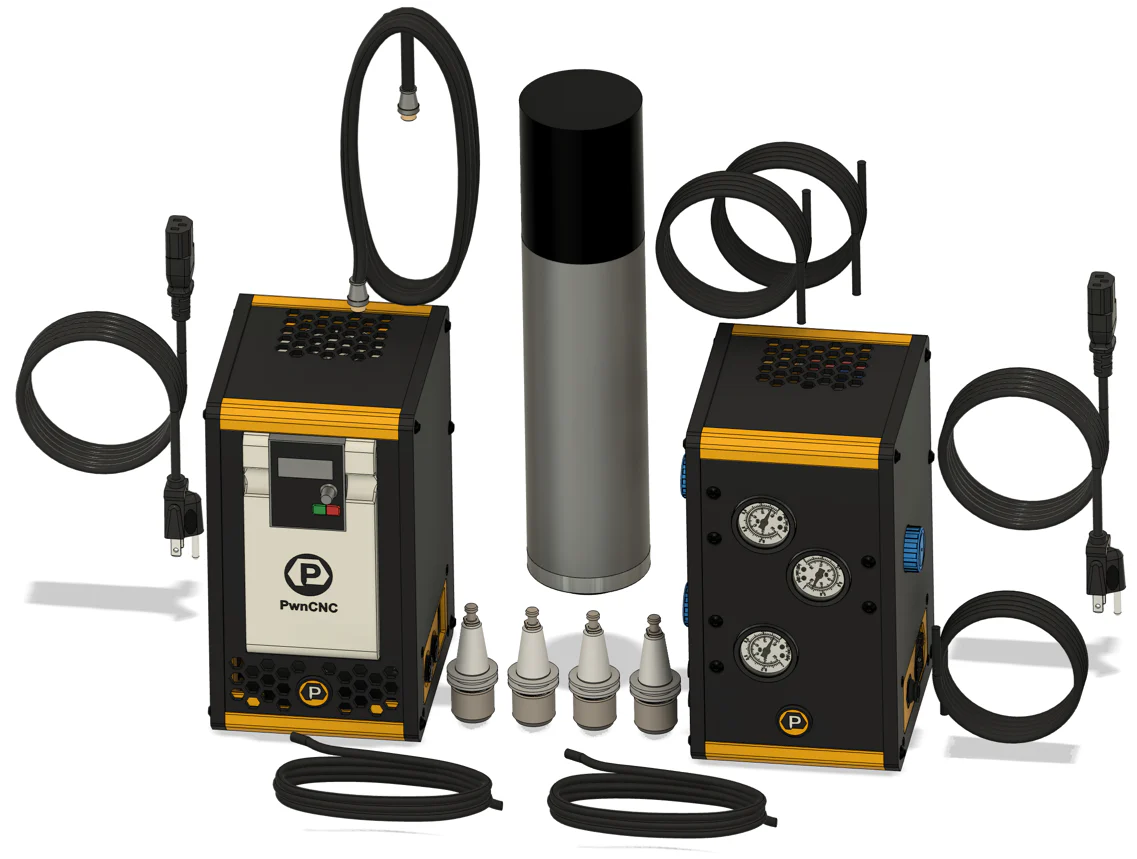

PwnCNC Automatic Tool Changer (ATC) System
Bring automatic tool changes to your CNC with a fully tested, plug-n-play ATC system from PwnCNC.
The PwnCNC Automatic Tool Changer (ATC) System is designed to reduce downtime, improve repeatability, and make multi-tool CNC projects easier to run. Each system is assembled, configured, and tested in-house before shipment so you receive a complete ATC spindle package built around your selected motor, voltage, cooling style, and controller workflow.
Whether you are upgrading an existing CNC or building a high-performance setup from the start, the PwnCNC ATC System gives you a cleaner and more capable path into automated tool changes.
Built for Serious CNC Workflows
An Automatic Tool Changer is one of the most powerful upgrades you can add to a CNC machine. Instead of manually swapping bits between operations, an ATC allows supported controllers to unload one ISO20 tool holder and pick up another from a configured tool location.
This helps streamline repeatable projects, production workflows, and jobs that require multiple cutting tools.
Air-Cooled and Water-Cooled Options
PwnCNC ATC Systems are available in air-cooled and water-cooled configurations.
- Water-Cooled ATC Motors: 80mm round-body spindles that require an 80mm spindle mount.
- Air-Cooled ATC Motors: Square-body spindles that may require a machine-specific adapter plate.
Please confirm your machine’s mounting requirements before ordering. Some machines require additional brackets, adapter plates, or custom mounting solutions.
Spindle Options
- 1.5kW, 110V, ISO20, water-cooled, 80mm round body
- 1.5kW, 110V, ISO20, air-cooled, square body
- 2.2kW, 220V, ISO20, water-cooled, 80mm round body
- 2.2kW, 220V, ISO20, air-cooled, square body
Technical Highlights
- ISO20 tool holder interface
- ER20 collet compatibility through ISO20 tool holders
- Up to 24,000 RPM
- Quiet operation compared to trim router setups
- 1.5kW models draw approximately 12A at 110V
- 2.2kW models draw approximately 10A at 220V
- ATC spindle runout less than 0.01mm
- Designed for supported automatic or manual ATC workflows
What Sets PwnCNC’s ATC System Apart?
- Built and tested in-house: Every ATC system is assembled and verified before shipment.
- Plug-n-play-focused design: Pre-wired, pre-configured, and designed to simplify installation.
- Shielded cabling: Helps reduce electrical interference when grounded and installed correctly.
- Enclosed VFD system: High-voltage wiring is housed inside the included VFD enclosure.
- Controller flexibility: Supports automatic operation with compatible controllers and manual operation for simpler setups.
- ISO20 tooling ecosystem: Designed around ISO20 tool holders, ATC racks, forks, cups, and related accessories.
Automatic and Manual Operation
With supported controllers, such as Masso, the ATC System can perform fully automatic tool changes using configured tool positions.
For simpler controllers, manual or push-button assisted tool changes may still be possible depending on the selected configuration. Some controller types require manual operation, additional wiring, or custom setup steps.
Built-to-Order Lead Time
All PwnCNC ATC Systems are built to order. Each system is assembled, wired, configured, tested, and verified in-house before shipment.
Typical lead time is 1–2 weeks before shipment. Lead time depends primarily on ATC motor availability, current order volume, and the configuration selected at checkout.
If timing is critical for your build, please contact us before placing your order so we can confirm current availability.

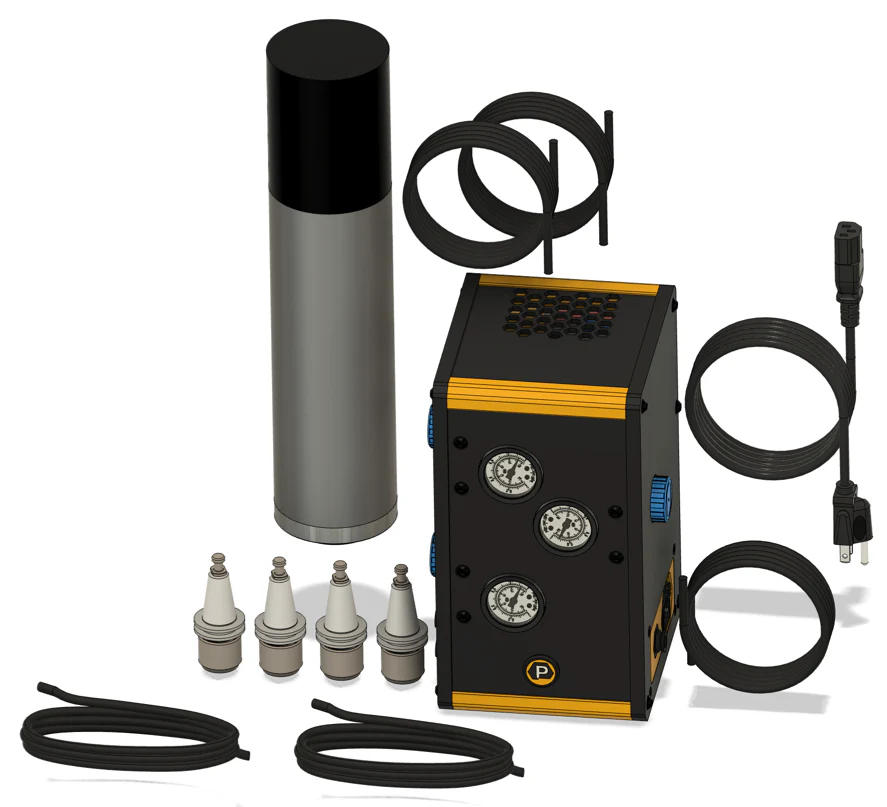

What’s Included
Your ATC System is built based on the options selected during checkout. Depending on your configuration, the system may include:
- Selected ISO20 ATC spindle motor
- Pre-programmed VFD installed in a PwnCNC enclosure
- Shielded spindle cable
- Power cord matched to selected voltage
- Controller-specific wiring or control components based on selected options
- Cooling components for water-cooled configurations
- Required ATC control components included with your selected configuration
- Four Flush Mount Tool Cups for ISO20 tool holders
Because this is a configurable bundle, the exact included parts depend on your checkout selections.
Important Bundler Product Note
This is a configurable bundle product. You will answer setup questions during checkout, and the appropriate parts will be added to your cart based on those selections.
Do not manually remove bundle components from your cart. If you remove items from the cart, those items will not ship, even if they were part of your original configuration.
Upgrading from a PwnCNC Spindle System?
Verified PwnCNC Spindle System owners may qualify for our ATC Upgrade Program. The upgrade package includes the ATC-specific components needed to move from a Spindle System to an ATC System, excluding components you may already own, such as the VFD and spindle cable. A VFD upgrade may be required depending on your existing system.
Compatibility
The PwnCNC ATC System is designed for hobby and small-shop CNC machines when configured correctly. Compatibility depends on your CNC machine, controller, spindle mount, available clearance, pneumatic setup, and selected ATC motor style.
Please review our ATC planning guide, compatibility information, and machine-specific installation instructions before ordering.
What’s Not Included
- Extra ISO20 tool holders unless specifically selected or bundled
- Additional tool racks, forks, or tool cups beyond what is listed
- Cutting tools
- Machine-specific mounting plates unless selected or included
- Air compressor or shop air source
- Coolant liquid or coolant reservoir for water-cooled configurations
- Custom controller integration beyond documented supported workflows
Important Notes
- ATC systems require proper planning, installation, calibration, and controller setup.
- Tool change positions must be configured and verified before running automatic tool changes.
- Air-cooled square-body ATC motors may require a machine-specific adapter plate.
- Water-cooled 80mm ATC motors require a compatible 80mm spindle mount.
- Shielded cables must be grounded properly for best EMI performance.
- Support for non-PwnCNC controllers or third-party CNC machines may be limited by the controller or machine manufacturer’s documentation.
- Because ATC Systems are custom-built, cancellations after procurement of major components may be subject to a restocking fee.
Recommended Add-Ons
- ISO20 tool holders
- ISO20 tool forks or tool cups
- Dominator Pro ATC Workflow Bundle
- Cyclone Bits
- High-precision ER20 collets
- Dust collection accessories
Original: $2,200.00
-65%$2,200.00
$770.00More Images
